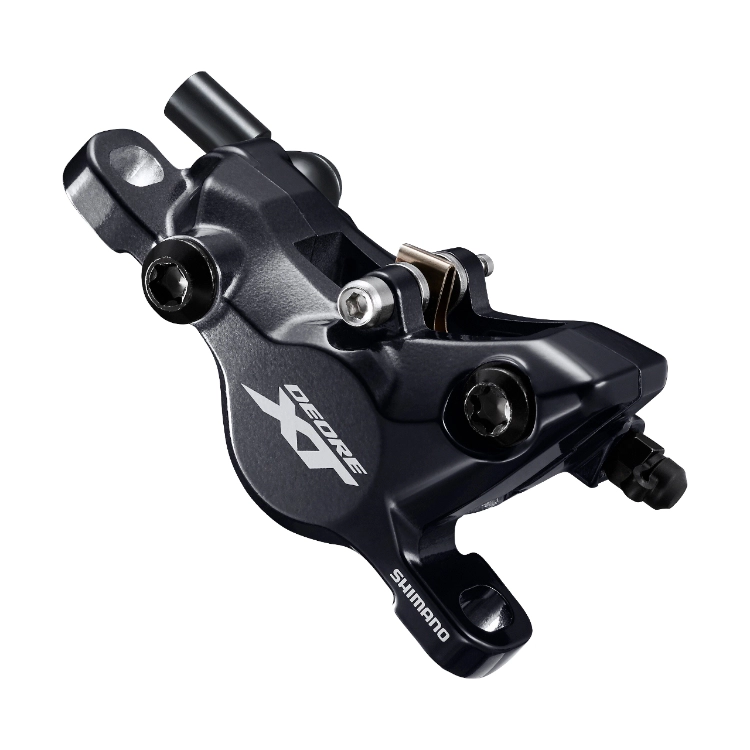

Shimano BR-M8100 Disc Brake Caliper Deore XT With Resin Pads

The Shimano Deore XT M8100 caliper features lightweight braking performance and reliable stopping power in all conditions.

FEATURES

• 2 Piston
• Superior modulation gives you greater control
• Quicker Piston retraction
• Lightweight
• Quick and easy assembly
• Banjo type connection and inside hose routing

PRODUCT SPECIFICATIONS

Model No: BR-M8100
Series: Deore XT M8100 Series
Colour: Series colour
Average weight: 121 grams
Brake type: Hydraulic disc brake
Brake hose (kit): SM-BH90-SBM
Hose joint: Banjo
Brake hose color (kit)|1: Black
J-Kit spec (for OEM): Yes
ICE TECHNOLOGIES pad compatible caliper: Yes
Pad|Standard 1: G05A-RX Resin (w/o fin)
Pad|Standard 2: G04S-MX Metal (w/o fin)
Pad|Option 1: J05A-RF Resin (w/ fin)
Pad|Option 2: J04C-MF Metal (w/ fin)
Recommended brake lever: BL-M8100 BL-T8100
Recommended disc brake rotor: RT-MT800
Compatible rotor size|140 mm (SS): Yes
Compatible rotor size|160 mm (S): Yes
Compatible rotor size|180 mm (M): Yes
Compatible rotor size|203 mm (L): Yes
Compatible rotor size|220 mm (LL): Yes
Oil: Shimano mineral
One Way Bleeding: Yes
Mount type: Post type
Piston: 2
Caliper fixing screw|Tool size: 5 mm
Caliper fixing screw|Anti loosen method: Snap ring
Pad mount: Pad axle
