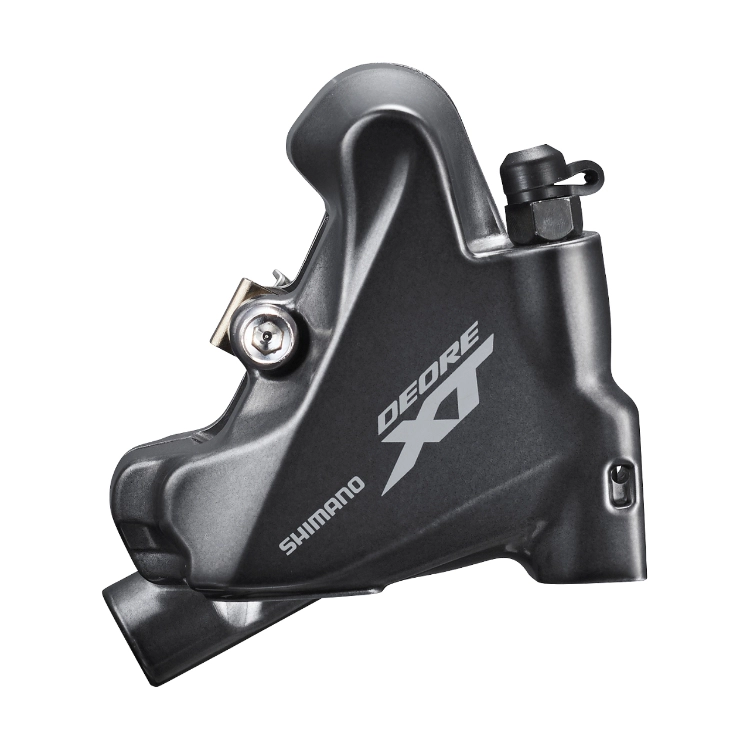

Shimano BR-M8110 Disc Brake Caliper Deore XT Race With Resin Pads Flat Mount

The Shimano Deore XT M8110 flat-mount caliper features lightweight braking performance and reliable stopping power in all conditions. The 2-piston caliper is compatible with 140/160/180 mm disc brake rotor sizes.

FEATURES

• Clean & compact design
• Same braking power as post-mount 2-piston (BR-M8100)
• Same frame requirement as road flat mount
• Compatible disc brake rotor size: 180/140/160 mm

PRODUCT SPECIFICATIONS

Model No: BR-M8110
Series: Deore XT M8100 Series
Colour: Series colour
Average weight: 126 grams
Remarks: For rear only
Brake type: Hydraulic disc brake
Brake hose (kit): SM-BH90-SS
Hose joint: Straight
Brake hose color (kit)|1: Black
J-Kit spec (for OEM): Yes
Ice Technologies pad compatible caliper: Yes
Pad|Standard 1: K05S-RX Resin (w/o fin)
Pad|Standard 2: K04S-MX Metal (w/o fin)
Pad|Option 1: L05A-RF Resin (w/ fin)
Pad|Option 2: L04C-MF Metal (w/ fin)
Fixing screw spec for rear mount|20 mm mount: Yes
Fixing screw spec for rear mount|25 mm mount: Yes
Fixing screw spec for rear mount|30 mm mount: Yes
Recommended brake lever: BL-M8100
Recommended disc brake rotor: RT-MT800
Compatible rotor size|140 mm (SS): Yes
Compatible rotor size|160 mm (S): Yes
Compatible rotor size|180 mm (M): Yes
Oil: Shimano mineral
One Way Bleeding: Yes
Mount type: Flat mount
Piston: 2
Caliper fixing screw|Tool size: 4 mm
Caliper fixing screw|Anti loosen method: Screw fix pin+Snap ring
Pad mount: Pad axle
