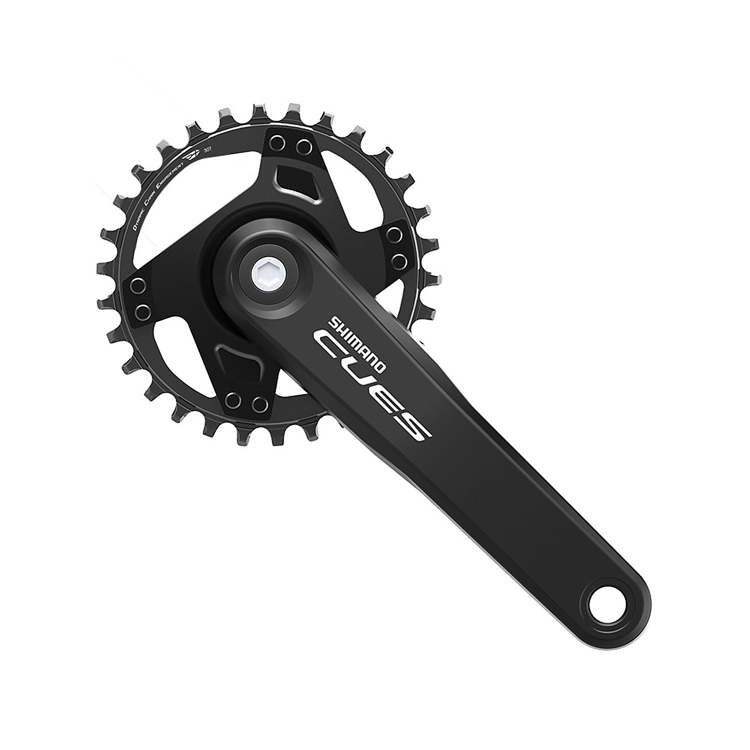

Shimano FC-U4000 Front Crankset Cues 175mm 30T

Superior chain retention and power transfer for fun riding over the rough stuff.

Grow your confidence riding hard over the rough stuff with this crankset’s wide-range gearing and seamless pedaling.

Shimano Cues is built upon the original LinkGlide technology to provide smooth and intuitive shifting that riders can count on in any situation. With up to three times the durability of HG when used with an e-bike, this groupset can stand up to the increased stresses that an assist-powered bike places on drivetrain components.


**SHIMANO CUES/LINKGLIDE COMPATIBLE ONLY**

FEATURES

• Designed for 9, 10 & 11 Speed
• Dynamic Chain Engagement+
• Special gear tip shape improves chain engagement and retention for smooth riding over rough terrain

PRODUCT SPECIFICATIONS

Model No: FC-U4000-1
Series: Cues U4000 Series
Colour: Series colour
Rear speeds: 9/10/11
Compatible chain: LinkGlide, HG 11-speed
Chain line (mm): 52
O.L.D.|Thru (mm): 148, 142
O.L.D.|QR/Nut (mm): 141, 135
P.C.D. (mm): Riveted
Spider/gear arms: 4
Chainring combination: 30T
Q-factor (mm): 178
Crank arm length (mm)|175: Yes
Optional chain guard|Without chain/bash guard: Yes
Compatible bottom bracket type|Square: Yes
Recommended bottom bracket|Threaded (normal): BB-UN300
Axle length of BB-UN/ES (mm)|Threaded (normal): LL123, LL122
Threaded bottom bracket shell width (mm)|68: Yes
Threaded bottom bracket shell width (mm)|73: Yes
Stainless chain guard fixing screw: Yes
Crank fixing screw included: Yes
