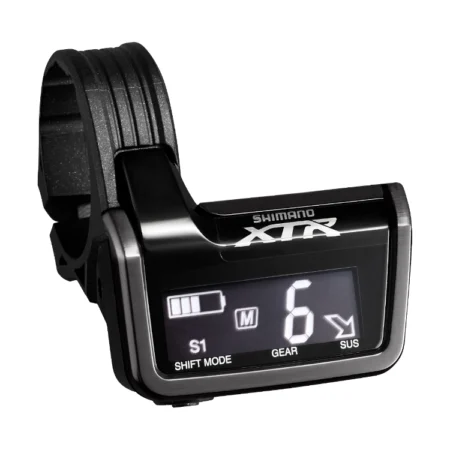

Shimano SC-M9051 System Display

The Shimano SC-M9051 serves as a display, charging port, and wireless communication connector for E-Tube compatible Di2 systems.

FEATURES

• Identify system status at a glance
• Shimano synchronised Shift mode switch
• Precision derailleur adjustment
• Easy access adjustment mode
• Numerical adjustment indicator
• Junction A function
• Battery charging port
• 3 E-Tube ports
• Wireless communication
• E-TUBE setting with smart phone/tablet

PRODUCT SPECIFICATIONS

Model No: SC-M9051
Series: Shimano XTR M9050 Series
Average weight: 30 grams
Compatible system: E-Tube system
Wireless system: ANT private, Bluetooth®LE
Firmware update by E-Tube Project: Yes
SD50 port (pcs): 3
SD300 port (pcs): 0
SD50 connector (pcs): 0
SD300 connector (pcs): 0
Remarks: *2 Spec of clamp band diameter φ31.8 and φ35.
Attachment position: Handle bar*
Adjust button: Yes
*** Data of list of “Display function” is sent to other digital device by ANT private.
Display function***|Gear indicator (rear): 11
Display function***|Gear indicator (front): 1/2/3
Display function***|Shifting Mode (manual / Synchronised Shift): Yes
Display function***|Suspension Mode: Yes
Display function***|Shifting adjust mode: Yes
Display function***|Battery charge level: Yes
Setting function|Shifting adjust: Yes
For Di2 system|Shifting adjust indicator: Yes
For Di2 system|System diagnosis: Yes
For Di2 system|Charging port for built-in battery: Yes
For Di2 system|Compatible charger: SM-BCR2
For Di2 system|Synchronised Shift mode change: Yes
