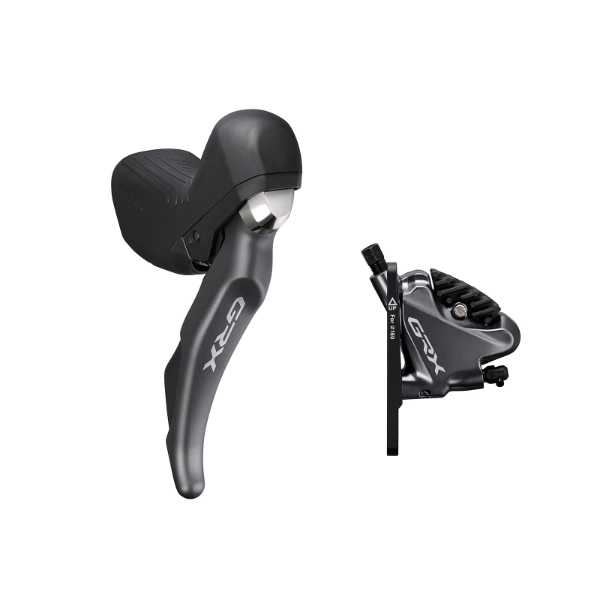

Shimano ST-RX810 Shift-Brake Lever GRX Right Hand With BR-RX810 Front Disc Brake Caliper

The Shimano GRX Dual Control Lever delivers light and responsive shifting for mixed-terrain riding. The ergonomic shifter design improves comfort and the textured, anti-slip brake lever increases control on bumpy terrain.

FEATURES

• Greater mixed-terrain control
• Gravel inspired lever and bracket ergonomics
• Anti-slip brake lever
• Same light shifting operation as top tier road systems
• Excellent heat dissipation
• Ice Technologies
• Flat Mount
• Simple set up and maintenance
• Convenient tool access
• Easy hose joint system (J-kit)
• Simple wheel replacement
• Easy and clean bleeding system
• One Way Bleeding

PRODUCT SPECIFICATIONS

Model No: ST-RX810-R
Series: GRX 11-speed
Colour: Series colour
Average weight: 286 grams
Bracket cover color|1: Standard
Shifter type: Dual Control Lever
Shift lever|Rear speeds: 11
Shift lever|Max. multiple shifts (main lever/rear): 2
Shift lever|Compatible rear derailleur type: Road 11-speed
Brake lever|Brake hose (kit): SM-BH90-JK-SSR
Brake lever|Hose joint: Straight
Brake lever|Brake hose color (kit)|1: Black
Brake lever|Oil: Shimano Mineral
Brake lever|Reach adjust|Tool: Yes
Brake lever|Reach adjust: Yes
Brake lever|Funnel bleeding: Yes
Brake lever|Free stroke adjust: Yes
Brake lever|Servo Wave: Yes
Clamp band|Diameter (mm): 23.8-24.2
Shifter lever body|Release: Resin & Steel
Shift lever cable|Outer casing|Lever side: OT-SP41
Shift lever cable|Outer casing|Rear derailleur side: OT-RS900
Shift lever cable|Inner cable|Polymer-coated cable: Yes

PRODUCT SPECIFICATIONS

Model No: BR-RX810-R
Series: GRX 11-speed
Colour: Series colour
Average weight: 141 grams
Remarks: Front spec with adaptor
Brake type: Hydraulic disc brake
Brake hose (kit): SM-BH90-JK-SSR, SM-BH90-J-SSR
Hose joint: Straight
Brake hose color (kit)|1: Black
J-Kit spec (for OEM): Yes
Ice Technologies pad compatible caliper: Yes
Pad|Standard 1 L05A-RF Resin (w/ fin)
Pad|Option 1 K05S-RX Resin (w/o fin)
Pad|Option 2 K04S-MX Metal (w/o fin)
Pad|Option 3 L04C-MF Metal (w/ fin)
Fixing screw spec for rear mount|10 mm mount: Yes
Fixing screw spec for rear mount|15 mm mount: Yes
Fixing screw spec for rear mount|20 mm mount: Yes
Fixing screw spec for rear mount|25 mm mount: Yes
Fixing screw spec for rear mount|30 mm mount: Yes
Fixing screw spec for rear mount|35 mm mount: Yes
Recommended disc brake rotor: SM-RT800, RT-MT800
Oil Shimano: mineral
One Way Bleeding: Yes
Mount type: Flat mount
Piston: 2
Caliper fixing screw|Tool size: 4 mm
Caliper fixing screw|Anti loosen method: Screw fix pin + Snap ring
Pad mount: Pad axle

ABOUT SHIMANO

In response to surging demand for global environmental preservation, bicycles now attract attention as the most eco-friendly means of transport. Shimano are dedicated to supply high-quality and high-performance components for different types of bicycles made in various countries and regions of the world, ranging from bicycles for the world’s top racers to daily users.
