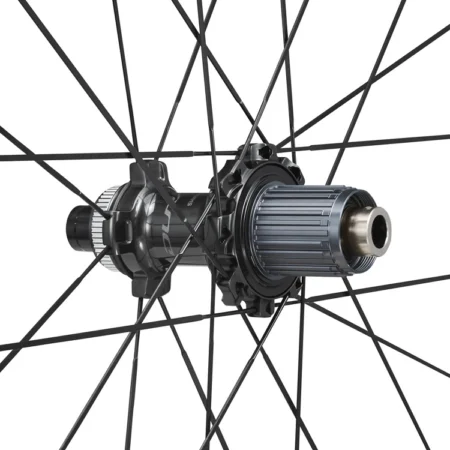

Shimano WH-R9270-C60-HR-TL Rear Wheel 142x12mm Center Lock 700C Tubeless

Perfect for flatter courses and time trials, the Dura-Ace C60 prioritises aerodynamic efficiency and lateral rigidity. The hub design, stiffer spokes, and deep section rim are designed specifically to allow you to push harder in corners and ensure that every bit of your effort is translated into forward motion.

Like the entire Dura-Ace wheel family, the C60 started with a blank slate. The C60 receives stiffer spokes, and 1.8 mm instead of 1.5 mm. Tested by Shimano professional athletes, this focus on the lateral rigidity of C60 allows you to push harder in corners and when maneuvering at higher speeds. Lastly the new wind-tunnel tested, deep section rims feature a faster, more stable cross-section that time trialists, triathletes, and sprinters alike will enjoy.

FEATURES

• HR: High-Rigidity
• 60 mm height full carbon rim
• Internal rim width: 21 mm

PRODUCT SPECIFICATIONS

Model No: WH-R9270-C60-HR-TL-R
Series: Dura-Ace R9200 Series
Average weight: 858 grams
Model name: WH-R9270-C60-HR-TL
Specification: R
Colour|1 Hub shell: Series colour
Front/Rear: Rear
Brake type: Center Lock disc brake
Rear speeds: 12
O.L.D. (mm): 142
Wheel size: 622 x 21C (700C)
Tyre|Type: Tubeless
Tyre|Recommended size: 25-622 – 32-622
Rim|Height (mm): 60
Rim|Internal width (mm): 21
Rim|External width (mm): 28
Rim|Requires rim tape: Yes
Spokes|Number: 24
Spokes|Straight pull: Yes
Spokes|Bladed: Yes
Spokes|Butted: Yes
Spokes|Diameter (mm): 2.0-1.8-2.0
Axle fixing method: 12 mm E-Thru
Thru axle (length x inner diameter ; mm)|142 x 12: Yes
Spline type|HG spline L2 (ROAD 12-speed dedicated): Yes
Engagement type: Direct engagement
Disc mount|Center Lock: Yes
Disc mount|140 mm disc brake rotor compatible: Yes
OPTBAL (2:1): Yes
D2 rim: Yes
Seal|Hub: Contact
Seal|FreeHub body: Contact
